Curved exit sign X-ESC

£46.80£144.62

  • Bright white LED light source
  • IP20 interior use
  • Curved front pannel

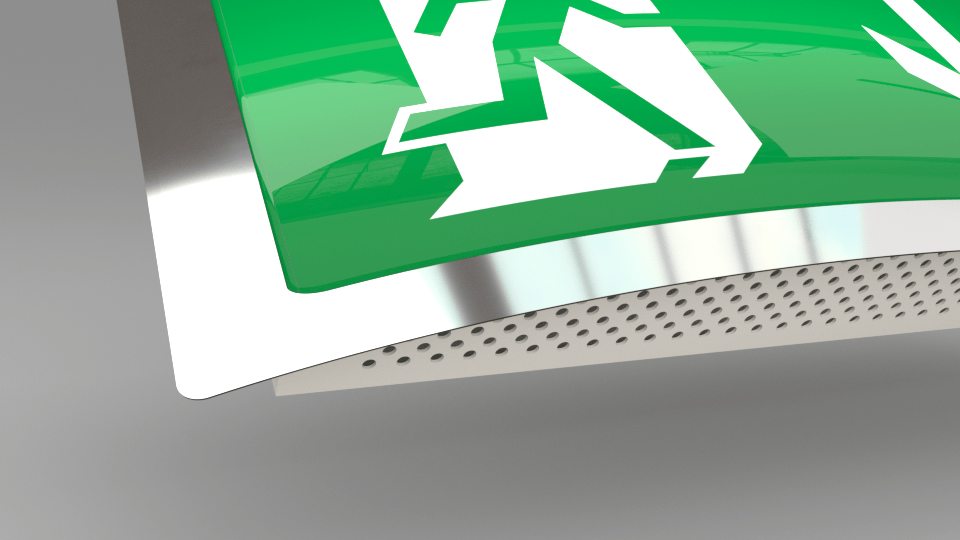

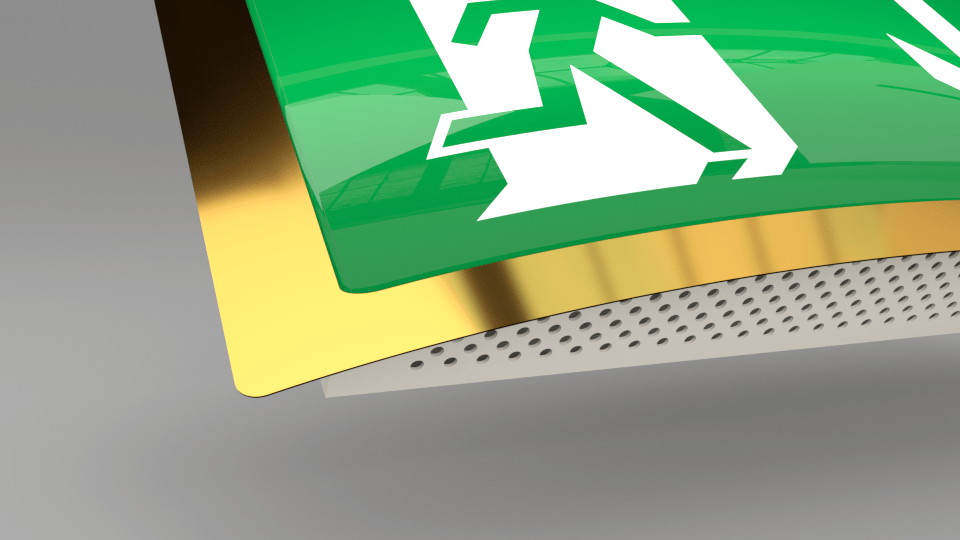

  • Chrome and brass options available
  • Downlight facility
  • Range of ISO 7010:2011 legends available
  • 30 M viewing distance
Clear
SKU: X-ESC Category: Tag:

The X-ESC Light is an attractively designed, wall mounted, emergency escape route sign. The convex front and perforated downlight section make for an eye-catching alternative.

With additional self testing features to ensure that routine monthly and yearly tests are never missed. Comprising a white, stove-enamelled, zintec-coated sheet steel base, and fitted with a self-extinguishing legend panel, the X-ESC Light is designed for use on escape routes and final exits. It conforms with the 850°C hot-wire test, as defined by ICEL. The X-ESC Light has a 20mm cable knockout to the back.

Dimensions 232 × 428 × 70 mm
Legend Arrow Direction

Arrow Left, Arrow Right, Arrow Down, Arrow Up

Finish Colour

White, Brass, Chrome

Intelligent Capabilities

None, Self Test, DALI (Please call)

IP rating

IP20

Viewing Distance

30 Meters

Operation

Maintained / Non-maintained

Datasheet
