BSI Kitemark Easy Light Emergency Bulkhead

  • BSI Kitemark certified
  • IP40 internal
  • Photometric and spacing data available
  • 105 / 210 / 480 Emergency Lumen
  • 5 to 40°C

This product is currently out of stock and unavailable.

SKU: GR1312 Category:

With a classic design and low profile, the Easy Light luminaire family has multiple versions that enables this emergency bulkhead to satisfy the demands for emergency lighting of various installations such as hospitals, hotels, and schools.

IP40 rated this emergency bulkhead is suitable for internal areas and comes with a test button, so that you can perform a quick functional test when required.

Three different emergency light outputs are available 105 lumens, 210 lumens & 480 lumens.

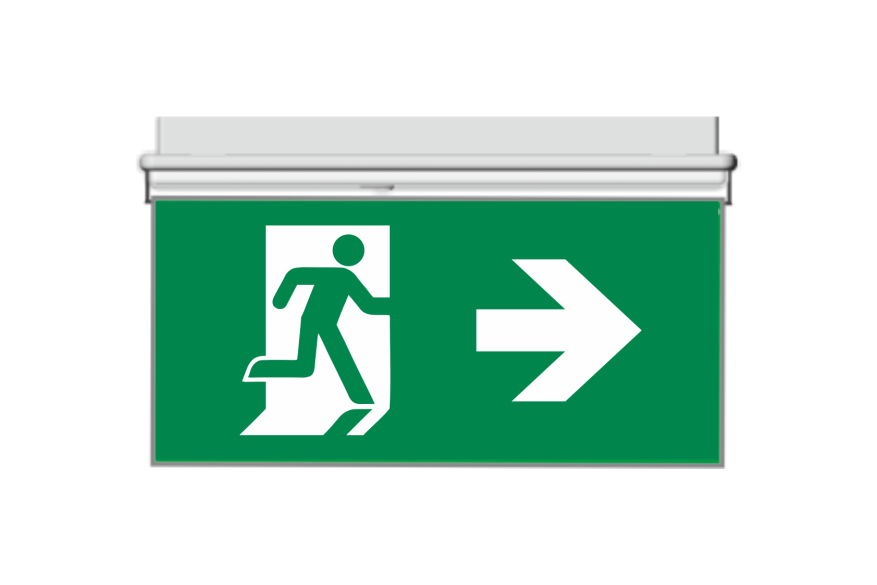

The optional accessories enables the easy light to be semi-recessed on false ceilings or converted to a double-sided emergency exit sign.

Coming soon

Weight N/A
Dimensions 143 × 353 × 57 mm
Operation Voltage

220-240V AC/50-60Hz

Maximum Power Consumption

3.4W/3.6VA(105 lm), 4.5W/4.8VA (210 lm), 4.9W/5.2VA (480Lm)

Battery

3.6V/1.5Ah Ni-Cd (105Lm), 3.6V/3Ah Ni-Cd (210Lm), 4.8V/4Ah NiMH (480Lm)

Lumens

30Lm Maintained, 105Lm, 210Lm, 480Lm

IP Rating

IP40

Produced in Accordance with

EN 60598-1, EN 60598-2-22, ΕΝ 55015, ΕΝ 61547, ΕΝ 61000-3-2, ΕΝ 61000-3-3

Operating temperature range

5 to 40 C

Relative Humidity

Up to 95%

Dimensions

353 x 143 x 57 mm

Weight

780gr (105Lm), 880gr (205Lm), 990gr (480Lm)

Datasheet

Spacing Tables

BSI Kitemark Certificate
